HTML is based on tags¶

the HTML language structures the content of a web page in terms of sections, headers, paragraphs, lists of items, images ...

the language is based on tags written between < and > - for example <head>

an element (a section, a header, ...) is composed by

an opening tag e.g. <head>
a content that can be empty
a closing tag e.g. </head>

HTML document structure¶

the overall structure of a HTML document is composed of two parts, a header and a body, like this:

fragment1 = `<html>
  <head>
     <!-- various document-wide declarations -->
  </head>
  <body>
     <!-- the actual document contents -->
     Hello
  </body>
</html>`

tools.sample_from_strings({html: fragment1}, {separate_show: false})

browser and server¶

regular setup¶

usually the content gets fetched on the Internet
with the http:// protocol (or https..)

our setup today¶

but today, we will instruct the browser to get files from our laptop
hence the use of the file:// protocol

file: and CORS

please note that, as time goes by, using file: URLs for development is becoming less and less workable; notably because of new policies related to Cross-Origin cookies; but let’s not get ahead of ourselves, this will work just fine for now

for more serious work, see the page on setting up vite for a more realistic setup

practice¶

start from an empty folder
open vs-code and create a file named hello.html
copy the above template
open it in your web browser (preferably Chrome)
- often you can simply double-click in the file explorer
- or use the File → Open File menu
- or directly type a URL like
  file:///the/complete/path/to/hello.html

you need to reproduce this:

your hello.html should look like this (left hand side)
and in the browser it will look like this (right hand side)

// need to set an id as the default is to hash the html content
// and we will reuse this later down the page
tools.sample_from_strings(
    {html: fragment1},
    {id: 'fragment1', height: '12em', separate_show: false})

accessing your browser’s devel tools¶

all browsers come with development tools for debugging
as a first contact with these, let us inspect the content of our HTML document

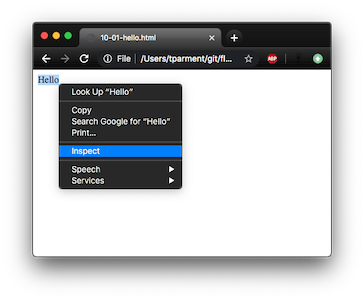

for that, the simplest way is to
- right-click on the Hello text
- and choose Inspect

check for devel tools¶

if you cannot see the devel tools (see next slide for a glimpse) it means your browser may need additional installation (google for how to do that)
here’s how to check your browser (all this on mac at least)
on Safari: you should have a Develop menu in the main menubar:
- File Edit View History Bookmarks Develop Window
on Chrome: you should have a Developer submenu
in the View menu in the main menubar
on Firefox: you should have a Web Developer entry
in the Tools menu in the main menubar

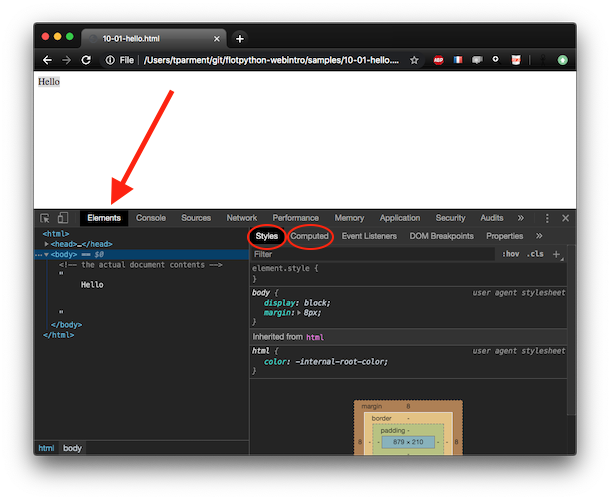

the Elements tab¶

left pane, navigate the elements
right pane, visualize the selected element’s applicable Styles and Computed properties (more on this later)

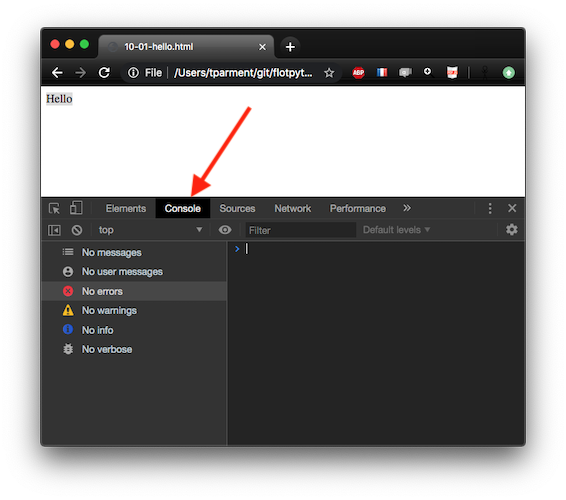

the Console tab¶

another interesting part is the (JavaScript) Console tab
this is where debug messages end up (if any; here of course there are none)

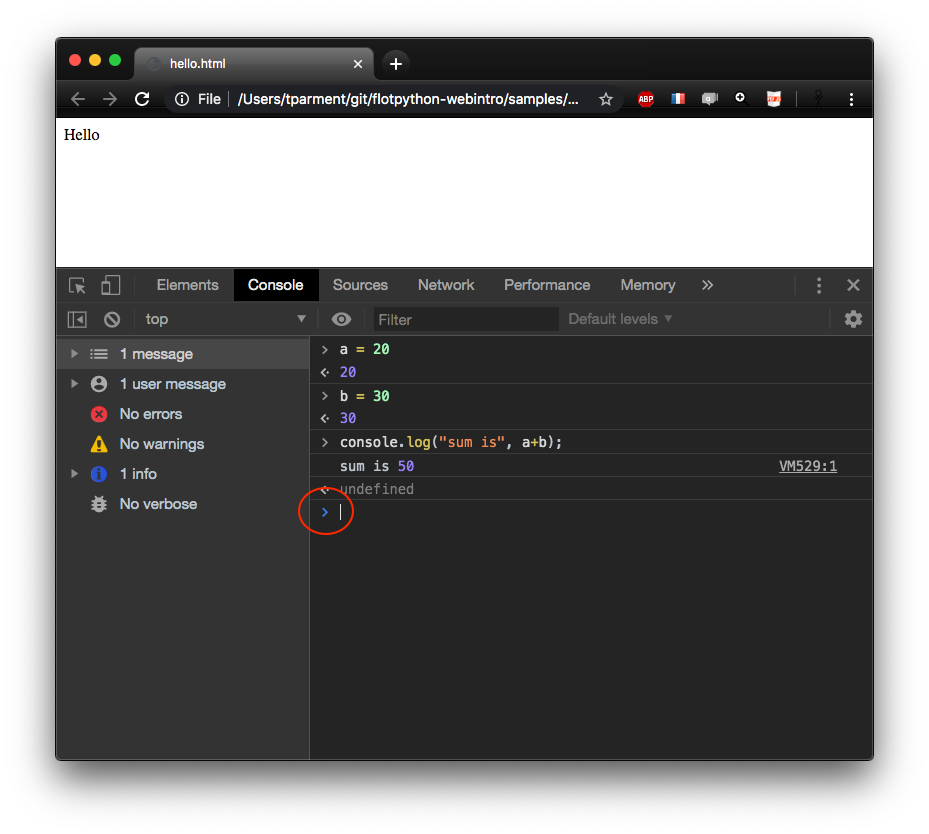

the REPL¶

the area with the > is the REPL (i.e. Read, Eval, Print Loop) - juste like the >>> with Python
where you can type and run your first JavaScript code

DOM = Document Object Model¶

the <tag> ... </tag> notation
unambiguously maps to a tree structure known as an Abstract Syntax Tree (AST)
referred to in all documentation as "the DOM "

this HTML fragment

<html>
 <head>
  <title>top title</title>
 </head>
 <body>
  <p>a paragraph</p>
  <p>a paragraph</p>
 </body>
</html>

will result in this tree

be rigourous¶

browsers tend to be as tolerant as possible
e.g. omitting a closing tag may render just fine
however there’s only so much that can be guessed
and this may cause huge headaches down the road
so make sure to always close your tags properly

do not do this !!¶

fragment_unclosed = `<p> do not do this
<ul>
<li> unclosed tags <b>look like</b> they work
<li> but they will hurt eventually
`

tools.sample_from_strings({html: fragment_unclosed}, {separate_show: false})

do this instead¶

fragment_closed = `<p> do this instead </p>
<ul>
<li> always close your tags </li>
<li> clean up behind yourself </li>
</ul>
`

tools.sample_from_strings({html: fragment_closed}, {separate_show: false})

a few tips¶

vs-code has great support for editing html documents
- even with no extension installed
- see e.g. this page for details
- and in particular emmet snippets
you often need to switch from editor to browser and back
- use keyboard shortcuts to switch between apps
- typically with ⌘-tab (or ⌥-tab or ⌃-tab depending on your environment)
also make sure to know the keyboard shortcut
for your browser to reload a page
- typically ⌘-r (or ⌃-r on Windows...)
